Analysing geodata from sports trackers

In this example we will show how Tengri can be used to analyse geodata from sports trackers such as Garmin, Strava and others.

The most popular formats for recording and storing geodata in sports trackers are .gpx and .fit. In addition to GPS-coordinates of points (longitude, latitude, altitude), these formats also store the time the athlete travelled to a given point and other information about the athlete and his equipment (heart rate, power, pedal speed, speed, temperature, etc.).

As a dataset for this example we will take an upload of the archive of all data from one Strava profile as of 9 September 2025. To learn how to do such an upload, see here.

The Strava data upload is an archive containing, among other things, an activities folder with all activities of a given user in the form of .gpx or .fit files (depending on the devices used for track recording) and an activities.csv file, which contains additional information from Strava service (activity name, activity type, comments, various calculated indicators, etc.).

In total, there are 2190 activities (tracks) in our dataset, some of which are represented as .gpx files, and some as .fit files.

Loading raw data

First, let’s load data. To do this in a cell of type Python let’s do the following:

  1. Upload a file from the file sharing service

  2. Unzip the .zip archive and the .gz files inside it

  3. Set the column names in the two tables to be created — for all tracks and for all points from all tracks

  4. describe the auxiliary functions

  5. We loop through all the activity files and do parsing of data from them, and parsing will be different for .gpx and .fit files. For parsing we will use the handy modules Python gpxpy and fitdecode.

  6. We write the generated DataFrames into tables using the function tngri.sql

import os
import zipfile
import tngri
import gdown
import gpxpy
import pandas as pd
import gzip
import shutil
import fitdecode
import datetime
from geopy.geocoders import Nominatim
geolocator = Nominatim(user_agent="tengri")

start = datetime.datetime.now()

(1)
# Upload the source files
google_drive_url = 'https://drive.google.com/uc?id=1yFycFAGv00WPPGvr65pCRSeHDJM9wol6'
output = 'data.zip'
gdown.download(google_drive_url, output, quiet=False)

(2)
# Unzip the .zip
temp_dir = 'temp'
try:
    with zipfile.ZipFile('data.zip', 'r') as zObject:
        zObject.extractall(path=temp_dir)
except Exception as e:
    print(f'Error: {e}')

downloaded = len(os.listdir(temp_dir))
print(f'Downloaded files total: {downloaded}')

# Unpack the .gz
unpacked = 0
for file in os.listdir(temp_dir):
    file_path = os.path.join(temp_dir, file)
    if file.endswith('.gz'):
        unpacked += 1
        with gzip.open(file_path, 'rb') as f_in:
            with open(file_path[:-3], 'wb') as f_out:
                shutil.copyfileobj(f_in, f_out)

print(f'Unpaсked .gz files total: {unpacked}')
print(f'Time from start: {str(datetime.datetime.now() - start)}')

(3)
# Columns for the track table
tracks_dict = {
    'track_id':[],
    'track_name':[],
    'track_length_km':[],
    'track_first_coord_lat':[],
    'track_first_coord_lon':[],
    'country':[]
    }
# Columns for the points table
points_dict = {
    'track_id':[],
    'latitude':[],
    'longitude':[],
    'elevation':[],
    'heart_rate':[],
    'temperature':[],
    'cadence':[],
    'power':[],
    'time':[],
    'speed':[]
    }

(4)
# Get extension from point for .gpx
def ext_from_point(point, type):
    res = pd.NA
    for ext in point.extensions:
        ext_list = [el.text for el in ext if type in el.tag]
        if len(ext_list) == 1:
            res = ext_list[0]
    return res

# Get power from point for .gpx
def power_from_point(point):
    res = pd.NA
    for ext in point.extensions:
        if ext.tag == 'power':
            res = ext.text
    return res

# Coordinate conversion for .fit
def convert_coord(coord):
    if pd.isna(coord):
        return coord
    else:
        return coord/((2**32)/360)

# Convert speed from m/s to km/h
def convert_speed(speed):
    if pd.isna(speed):
        return speed
    else:
        return speed*3.6

# Determine country by coordinates
def get_country(coords):
    location = geolocator.reverse(f'{coords[0]}, {coords[1]}')
    if not location is None:
        return location.raw['address']['country']
    else:
        return 'Unknown'

(5)
# Start parsing gpx and fit
files_done = 0
for file in os.listdir(temp_dir):
    file_path = os.path.join(temp_dir, file)

    if file.endswith('.gpx'):
        files_done += 1
        with open(file_path) as f:
            gpx = gpxpy.parse(f)
            if not len(gpx.tracks) == 1:
                print(f'Not 1 track in file: {file_path}')

            cur_length_2d_km = gpx.tracks[0].segments[0].length_2d()/1000
            track_first_lat = gpx.tracks[0].segments[0].points[0].latitude
            track_first_lon = gpx.tracks[0].segments[0].points[0].longitude

            tracks_dict['track_first_coord_lat'].append(track_first_lat)
            tracks_dict['track_first_coord_lon'].append(track_first_lon)
            tracks_dict['track_id'].append(file)
            tracks_dict['track_name'].append(gpx.tracks[0].name)
            tracks_dict['track_length_km'].append(round(cur_length_2d_km, 2))
            tracks_dict['country'].append(get_country((track_first_lat, track_first_lon)))

            for point in gpx.tracks[0].segments[0].points:
                points_dict['track_id'].append(file)
                points_dict['latitude'].append(point.latitude)
                points_dict['longitude'].append(point.longitude)
                points_dict['elevation'].append(point.elevation)
                points_dict['heart_rate'].append(ext_from_point(point, 'hr'))
                points_dict['temperature'].append(ext_from_point(point, 'atemp'))
                points_dict['cadence'].append(ext_from_point(point, 'cad'))
                points_dict['power'].append(power_from_point(point))
                points_dict['time'].append(point.time)
                # There is no instantaneous speed in gpx
                points_dict['speed'].append(pd.NA)

    elif file.endswith('.fit'):
        files_done += 1
        track_first_lat = 0
        track_first_lon = 0
        with fitdecode.FitReader(file_path) as fit_file:
            tracks_dict['track_id'].append(file)
            tracks_dict['track_name'].append(pd.NA)
            distance = 0
            for frame in fit_file:
                if not isinstance(frame, fitdecode.records.FitDataMessage):
                    continue
                if not frame.name == 'record':
                    continue
                if not (frame.has_field('position_lat') and frame.has_field('position_long')):
                    continue
                cur_lat = convert_coord(frame.get_value('position_lat', fallback=pd.NA))
                cur_lon = convert_coord(frame.get_value('position_long', fallback=pd.NA))

                points_dict['track_id'].append(file)
                points_dict['latitude'].append(cur_lat)
                points_dict['longitude'].append(cur_lon)
                points_dict['elevation'].append(frame.get_value('altitude', fallback=pd.NA))
                #points_dict['heart_rate'].append(frame.get_value('heart_rate', fallback=pd.NA))
                points_dict['heart_rate'].append(pd.NA)
                points_dict['temperature'].append(frame.get_value('temperature', fallback=pd.NA))
                #points_dict['cadence'].append(frame.get_value('cadence', fallback=pd.NA))
                points_dict['cadence'].append(pd.NA)
                points_dict['power'].append(frame.get_value('power', fallback=pd.NA))
                points_dict['time'].append(frame.get_value('timestamp'))
                points_dict['speed'].append(convert_speed(frame.get_value('enhanced_speed', fallback=pd.NA)))

                cur_dist = frame.get_value('distance', fallback=pd.NA)
                if type(cur_dist) == float:
                    distance = round((cur_dist/1000), 2)
                if track_first_lat == 0 and not pd.isna(cur_lat):
                    track_first_lat = cur_lat
                if track_first_lon == 0 and not pd.isna(cur_lon):
                    track_first_lon = cur_lon
            tracks_dict['track_length_km'].append(distance)
            tracks_dict['track_first_coord_lat'].append(track_first_lat)
            tracks_dict['track_first_coord_lon'].append(track_first_lon)
            tracks_dict['country'].append(get_country((track_first_lat, track_first_lon)))

    if files_done > 0 and files_done % 100 == 0 and file.endswith(('.fit', '.gpx')):
        print(f'Files done: {files_done}/{downloaded} \
        Points: {len(points_dict['track_id'])} \
        Time from start: {str(datetime.datetime.now() - start)}')

# Write the collected dictionaries to the DataFrame
df_tracks = pd.DataFrame.from_dict(tracks_dict)
df_points = pd.DataFrame.from_dict(points_dict)

df_points['time_text'] = df_points['time'].astype(str)
df_points = df_points.drop(columns=['time'])

# Table names to write in
table_names = ['demo_geo_tracks', 'demo_geo_points']

(6)
# Write the generated DataFrames to the tables
for frame, table_name in zip([df_tracks, df_points], table_names):
    print(f'Creating table: {table_name}')
    print(f'Size: {frame.shape}')

    file_name = tngri.upload_df(frame)
    tngri.sql(f"CREATE OR REPLACE TABLE {table_name} AS SELECT * FROM read_parquet('{file_name}')")

print(f'Finished. Time from start: {str(datetime.datetime.now() - start)}')
Downloading...
From (original): https://drive.google.com/uc?id=1yFycFAGv00WPPGvr65pCRSeHDJM9wol6
From (redirected): https://drive.google.com/uc?id=1yFycFAGv00WPPGvr65pCRSeHDJM9wol6&confirm=t&uuid=4e852907-5eeb-4ff6-ab4e-d166d6d45ecd
To: /home/python/data.zip

  0%|          | 0.00/243M [00:00<?, ?B/s]
  0%|          | 1.05M/243M [00:00<00:23, 10.5MB/s]
  2%|▏         | 4.72M/243M [00:00<00:09, 25.4MB/s]
  4%|▍         | 10.5M/243M [00:00<00:05, 38.9MB/s]
  6%|▌         | 14.7M/243M [00:00<00:07, 29.6MB/s]
  8%|▊         | 19.9M/243M [00:00<00:06, 35.6MB/s]
 10%|▉         | 24.1M/243M [00:00<00:05, 37.3MB/s]
 12%|█▏        | 28.8M/243M [00:00<00:05, 39.1MB/s]
 14%|█▍        | 33.6M/243M [00:00<00:05, 40.5MB/s]
 16%|█▌        | 37.7M/243M [00:01<00:05, 39.9MB/s]
 17%|█▋        | 41.9M/243M [00:01<00:04, 40.2MB/s]
 19%|█▉        | 47.2M/243M [00:01<00:04, 43.5MB/s]
 21%|██▏       | 51.9M/243M [00:01<00:04, 43.6MB/s]
 23%|██▎       | 56.6M/243M [00:01<00:04, 43.3MB/s]
 25%|██▌       | 61.3M/243M [00:01<00:04, 43.5MB/s]
 28%|██▊       | 67.1M/243M [00:01<00:03, 46.3MB/s]
 30%|██▉       | 71.8M/243M [00:01<00:03, 46.1MB/s]
 32%|███▏      | 78.6M/243M [00:01<00:03, 48.7MB/s]
 35%|███▍      | 84.4M/243M [00:02<00:03, 50.9MB/s]
 37%|███▋      | 89.7M/243M [00:02<00:03, 49.9MB/s]
 39%|███▉      | 94.9M/243M [00:02<00:02, 50.6MB/s]
 41%|████      | 100M/243M [00:02<00:02, 49.2MB/s]
 43%|████▎     | 105M/243M [00:02<00:02, 47.4MB/s]
 46%|████▌     | 111M/243M [00:02<00:02, 48.9MB/s]
 48%|████▊     | 116M/243M [00:02<00:02, 47.3MB/s]
 50%|█████     | 122M/243M [00:02<00:02, 46.5MB/s]
 52%|█████▏    | 126M/243M [00:02<00:02, 43.4MB/s]
 54%|█████▍    | 132M/243M [00:03<00:02, 43.6MB/s]
 57%|█████▋    | 137M/243M [00:03<00:02, 45.7MB/s]
 58%|█████▊    | 142M/243M [00:03<00:02, 43.9MB/s]
 60%|██████    | 147M/243M [00:03<00:02, 40.4MB/s]
 62%|██████▏   | 152M/243M [00:03<00:02, 42.0MB/s]
 64%|██████▍   | 156M/243M [00:03<00:02, 40.9MB/s]
 66%|██████▌   | 160M/243M [00:03<00:02, 40.4MB/s]
 68%|██████▊   | 165M/243M [00:03<00:01, 39.9MB/s]
 69%|██████▉   | 169M/243M [00:03<00:01, 39.6MB/s]
 71%|███████   | 173M/243M [00:04<00:01, 36.9MB/s]
 73%|███████▎  | 177M/243M [00:04<00:02, 29.7MB/s]
 75%|███████▍  | 181M/243M [00:04<00:01, 31.9MB/s]
 76%|███████▋  | 186M/243M [00:04<00:01, 33.8MB/s]
 78%|███████▊  | 190M/243M [00:04<00:01, 35.4MB/s]
 80%|███████▉  | 194M/243M [00:04<00:01, 36.6MB/s]
 82%|████████▏ | 198M/243M [00:04<00:01, 37.3MB/s]
 83%|████████▎ | 202M/243M [00:04<00:01, 38.0MB/s]
 85%|████████▍ | 207M/243M [00:05<00:00, 38.5MB/s]
 87%|████████▋ | 211M/243M [00:05<00:00, 38.8MB/s]
 88%|████████▊ | 215M/243M [00:05<00:00, 38.9MB/s]
 90%|█████████ | 219M/243M [00:05<00:00, 39.1MB/s]
 92%|█████████▏| 223M/243M [00:05<00:00, 39.2MB/s]
 94%|█████████▍| 228M/243M [00:05<00:00, 40.1MB/s]
 96%|█████████▌| 233M/243M [00:05<00:00, 42.2MB/s]
 98%|█████████▊| 239M/243M [00:05<00:00, 46.5MB/s]
100%|██████████| 243M/243M [00:05<00:00, 41.4MB/s]

Downloaded files total: 2190
Unpaсked .gz files total: 1765
Time from start: 0:00:11.331007
Files done: 100/2190         Points: 561928         Time from start: 0:01:57.949657
Files done: 200/2190         Points: 1055973         Time from start: 0:03:48.225765
Files done: 300/2190         Points: 1525239         Time from start: 0:05:38.334613
Files done: 400/2190         Points: 2125124         Time from start: 0:07:28.989251
Files done: 500/2190         Points: 2677727         Time from start: 0:09:25.163544
Files done: 600/2190         Points: 3190749         Time from start: 0:11:12.439539
Files done: 700/2190         Points: 3682379         Time from start: 0:13:02.326586
Files done: 800/2190         Points: 4241999         Time from start: 0:14:49.970186
Files done: 900/2190         Points: 4767488         Time from start: 0:16:37.493898
Files done: 1000/2190         Points: 5252788         Time from start: 0:18:24.054901
Files done: 1100/2190         Points: 5782689         Time from start: 0:20:14.398042
Files done: 1200/2190         Points: 6333129         Time from start: 0:22:03.400943
Files done: 1300/2190         Points: 6862458         Time from start: 0:23:51.433175
Files done: 1400/2190         Points: 7413209         Time from start: 0:25:41.723606
Files done: 1500/2190         Points: 7888312         Time from start: 0:27:28.314530
Files done: 1600/2190         Points: 8469405         Time from start: 0:29:22.235098
Files done: 1700/2190         Points: 8945913         Time from start: 0:31:10.916823
Files done: 1800/2190         Points: 9444734         Time from start: 0:33:01.630686
Files done: 1900/2190         Points: 9931590         Time from start: 0:34:49.403797
Files done: 2000/2190         Points: 10481654         Time from start: 0:36:37.313329
Files done: 2100/2190         Points: 11042971         Time from start: 0:38:29.835817
Creating table: demo_geo_tracks
Size: (2190, 6)
Creating table: demo_geo_points
Size: (11473061, 10)
Finished. Time from start: 0:40:59.713264

Note that we record data in two tables, which are linked through track ID (activity file name). And for convenience of further work with data, in the track table we immediately record the coordinates of the first point of the track (columns track_first_coord_lat and track_first_coord_lon) and the country calculated from these coordinates.

The execution of this cell takes about 40 minutes. But about half of that time is spent accessing the geopy service to determine the country from the coordinates of the track start point. If there’s a need to speed up the initial download. it is useful to disable this service.

Checking downloaded data

Check the track table:

SELECT count(*) AS "Количество треков"
    FROM demo_geo_tracks
+-------------------+
| Количество треков |
+-------------------+
| 2190              |
+-------------------+
SELECT *
    FROM demo_geo_tracks
    LIMIT 10
Done in 8.2 sec.

+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| track_id        | track_name | track_length_km | track_first_coord_lat | track_first_coord_lon | country       | speed              | time_stamp          |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 8205566762.fit  | null       | 51.04           | 52.47870256192982     | 13.336647050455213    | Deutschland   | 36.619200000000006 | 2020-06-26 13:44:05 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 5758691664.fit  | null       | 3.92            | 55.7587356492877      | 37.745437659323215    | Россия        | 36.781200000000005 | 2020-06-26 13:44:06 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 7562241822.fit  | null       | 21.69           | 36.594818104058504    | 30.56384850293398     | Türkiye       | 37.0512            | 2020-06-26 13:44:07 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 5752363946.fit  | null       | 62.85           | 55.764476750046015    | 37.71281814202666     | Россия        | 37.3068            | 2020-06-26 13:44:08 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 5774225138.fit  | null       | 114.24          | 55.99621960893273     | 36.27057650126517     | Россия        | 37.4652            | 2020-06-26 13:44:09 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 3602018438.fit  | null       | 34.76           | 55.76445009559393     | 37.712875390425324    | Россия        | 37.7856            | 2020-06-26 13:44:10 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 2665481253.fit  | null       | 43.88           | 57.06134635023773     | 23.311248868703842    | Latvija       | 37.980000000000004 | 2020-06-26 13:44:11 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 16185006845.fit | null       | 66.47           | 36.71585462987423     | -4.2837147787213326   | España        | 38.037600000000005 | 2020-06-26 13:44:12 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 5061483340.fit  | null       | 16.87           | 40.78166037797928     | -73.96295428276062    | United States | 38.037600000000005 | 2020-06-26 13:44:13 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+
| 1842519266.fit  | null       | 71.94           | 55.73788298293948     | 37.65193585306406     | Россия        | 38.419200000000004 | 2020-06-26 13:44:14 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+--------------------+---------------------+

Checking the point table:

SELECT count(*) AS "Количество точек"
    FROM demo_geo_points
+------------------+
| Количество точек |
+------------------+
| 11473061         |
+------------------+
SELECT *
    FROM demo_geo_points
    LIMIT 10
Done in 8.3 sec.

+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| track_id        | latitude           | longitude          | elevation         | heart_rate | temperature | cadence | power | speed              | time_text                 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.822746274992824 | -4.126659873872995 | 64.39999999999998 | null       | 18          | null    | 290   | 17.9784            | 2023-12-08 15:17:16+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.82279204018414  | -4.126656521111727 | 64.79999999999995 | null       | 18          | null    | 227   | 18.576             | 2023-12-08 15:17:17+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.822841661050916 | -4.126651743426919 | 65                | null       | 18          | null    | 148   | 18.4356            | 2023-12-08 15:17:18+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.82288742624223  | -4.126646546646953 | 65.20000000000005 | null       | 18          | null    | 204   | 18.511200000000002 | 2023-12-08 15:17:19+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.82293319143355  | -4.126641768962145 | 65.39999999999998 | null       | 18          | null    | 222   | 18.8244            | 2023-12-08 15:17:20+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.822978956624866 | -4.126635566353798 | 65.60000000000002 | null       | 18          | null    | 213   | 18.9216            | 2023-12-08 15:17:21+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.82302857749164  | -4.126623664051294 | 65.79999999999995 | null       | 18          | null    | 219   | 19.040399999999998 | 2023-12-08 15:17:22+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.823078114539385 | -4.126606900244951 | 66                | null       | 18          | null    | 223   | 19.1484            | 2023-12-08 15:17:23+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.82312773540616  | -4.126583598554134 | 66.20000000000005 | null       | 18          | null    | 223   | 19.332             | 2023-12-08 15:17:24+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+
| 11078368333.fit | 36.82317350059748  | -4.126557866111398 | 66.39999999999998 | null       | 18          | null    | 216   | 19.6452            | 2023-12-08 15:17:25+00:00 |
+-----------------+--------------------+--------------------+-------------------+------------+-------------+---------+-------+--------------------+---------------------------+

We see that the row counts in the track and point tables obtained via SQL queries match the data from the log of our first cell — 2,190 tracks and 11,473,061 points.

Now let’s download the file strava_activities.csv via Download Wizard and check the data in the table generated from it.

CREATE OR REPLACE TABLE demo_geo_strava_activities AS
    SELECT *
        FROM read_csv(
            'abogdanov/5fe14b4c4110_strava_activities.csv'
        );

SELECT *
    FROM demo_geo_strava_activities
    LIMIT 10
    ORDER BY distance DESC;
Done in 9 sec.

+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| activity id | activity date            | activity name               | activity type | activity description                                                               | elapsed time | distance | max heart rate | relative effort | commute | activity private note | activity gear        | filename                      | athlete weight | bike weight | elapsed time_1 | moving time | distance_1 | max speed | average speed | elevation gain | elevation loss | elevation low | elevation high | max grade | average grade | average positive grade | average negative grade | max cadence | average cadence | max heart rate_1 | average heart rate | max watts | average watts | calories | max temperature | average temperature | relative effort_1 | total work | number of runs | uphill time | downhill time | other time | perceived exertion | type | start time | weighted average power | power count | prefer perceived exertion | perceived relative effort | commute_1 | total weight lifted | from upload | grade adjusted distance | weather observation time | weather condition | weather temperature | apparent temperature | dewpoint | humidity | weather pressure | wind speed | wind gust | wind bearing | precipitation intensity | sunrise time | sunset time | moon phase | bike     | gear | precipitation probability | precipitation type | cloud cover | weather visibility | uv index | weather ozone | jump count | total grit | average flow | flagged | average elapsed speed | dirt distance | newly explored distance | newly explored dirt distance | activity count | total steps | carbon saved | pool length | training load | intensity | average grade adjusted pace | timer time | total cycles | recovery | with pet | competition | long run | for a cause | media                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 8735873891  | Mar 18, 2023, 7:08:04 AM | La Primavera with RCC       | Ride          | null                                                                               | 31281        | 200.77   | 179            | 194             | false   | null                  | Giant TCR Advanced 1 | activities/9376119823.fit.gz  | null           | 8           | 31281          | 23034       | 200777.4   | 16.188    | 8.717         | 295            | 372            | 26.8          | 71.6           | 47.4      | 0             | null                   | null                   | 172         | 74              | null             | 131                | null      | 146           | 3248     | null            | 14                  | 194               | 3246159    | null           | null        | null          | null       | null               | null | null       | 176                    | 26231       | 0                         | null                      | 0         | null                | 1           | null                    | 1679122816               | 3                 | 7.5                 | 5.6                  | 4        | 0.78     | 1011.5           | 2.9        | 6.7       | 184          | 0                       | 1679116544   | 1679159808  | 0.89       | 4194513  | null | 0                         | null               | 1           | 16093              | 0        | 340.5         | null       | null       | null         | 0       | 6.419                 | 1138.9        | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/4cda8a70-bd40-4e47-9f16-f8cce644e23d.jpg|media/5e549f56-1cc5-414e-b1f6-70923b28c261.jpg|media/aaefa66b-e6e3-425a-bf68-265c1d9f6355.mp4|media/bbf17907-6990-458b-8c41-ccba2dd463e4.jpg|media/d90e8b35-f65d-4649-8fcc-37214ba3b428.jpg|media/054f30b2-d198-4ecd-b520-2338c670d509.jpg                                                                                                                                                                                                                                            |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 2556833948  | Jul 23, 2019, 6:00:52 AM | Giro delle Dolomiti Stage 3 | Ride          | null                                                                               | 37818        | 180.47   | 177            | 184             | false   | null                  | Giant TCR Advanced 1 | activities/2713670395.fit.gz  | 83             | 8           | 37818          | 28854       | 180471     | 19.4      | null          | 3151           | 3175           | 225           | 2256           | 47.1      | 0             | null                   | null                   | 251         | 71              | 177              | 121                | null      | 149           | 5603     | null            | 29                  | 184               | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | null                      | null                      | null      | null                | null        | null                    | null                     | null              | null                | null                 | null     | null     | null             | null       | null      | null         | null                    | null         | null        | null       | 4194513  | null | null                      | null               | null        | null               | null     | null          | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/c21cda2a-7c14-47f7-a840-24c4cb412025.jpg|media/ae791d8b-e9a1-497c-9309-c49bbc318702.jpg                                                                                                                                                                                                                                                                                                                                                                                                                                        |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 4242331242  | Oct 25, 2020, 5:34:56 AM | Alanya Camp Day 6           | Ride          | Queen stage                                                                        | 33077        | 180.46   | 157            | 198             | false   | null                  | Giant TCR Advanced 1 | activities/4538350403.fit.gz  | null           | 8           | 33077          | 25687       | 180461.1   | 22.8      | 7.025         | 3110           | 3119           | 22            | 1060.4         | 33.3      | 0             | null                   | null                   | 108         | 73              | null             | 128                | null      | 190           | 4997     | null            | 27                  | 198               | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | 0                         | null                      | 0         | null                | 1           | null                    | 1603602048               | 1                 | 25.2                | 25.2                 | 6.6      | 0.3      | 1013.4           | 1.6        | 1.9       | 40           | 0                       | 1603598976   | 1603638272  | 0.32       | 4194513  | null | 0                         | null               | 0           | 16093              | 0        | 264.3         | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/574b5612-10c1-49b3-b3e1-bc97896153b0.jpg|media/1944d2ba-2e4a-4d15-b7ae-56ede81c8db2.jpg|media/363ad0a2-1fb7-4552-ae66-a53ec25e6bea.jpg|media/fc1cbf56-0bc7-4a26-88d1-c2558db2f934.jpg|media/d3a84a2d-0d73-4452-9be3-e53ff1d952f8.jpg|media/6013cbeb-193b-46ba-873d-5120c26a7535.jpg                                                                                                                                                                                                                                            |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 5109982540  | Apr 11, 2021, 7:09:45 AM | Desperados camp Day 8       | Ride          | Queen stage                                                                        | 33941        | 179.42   | 156            | 232             | false   | null                  | Giant TCR Advanced 1 | activities/5447314715.fit.gz  | null           | 8           | 33941          | 26284       | 179424.8   | 19.7      | 6.826         | 3192           | 3196           | -16           | 1030.8         | 27        | 0             | null                   | null                   | 107         | 73              | null             | 128                | null      | 184           | 5125     | null            | 17                  | 232               | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | 0                         | null                      | 0         | null                | 1           | null                    | 1618124416               | 1                 | 12.6                | 12.6                 | -1.3     | 0.38     | 1015.5           | 2.1        | 2.3       | 151          | 0                       | 1618111488   | 1618158208  | 0.99       | 4194513  | null | 0                         | null               | 0           | 16093              | 3        | 374.3         | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/7cab3cd2-33d2-4c90-a3a7-9fe1ab10717a.jpg|media/6ed80c53-4d61-4ed7-b86c-08f85e81ef3d.jpg|media/90ab131a-463e-412c-89c8-cbf489112f6a.jpg|media/90caba00-d1d4-4b58-80f5-672797383a42.jpg|media/4486c339-d16d-4c33-bac4-c790117bb62b.jpg|media/b633df5d-3cb5-42cd-9ce8-166382ab7d08.jpg|media/24da2f65-2a38-49e6-aaad-4e1637465eee.jpg|media/72c68f98-acbd-4ba8-9f3c-1841147ee3ec.jpg                                                                                                                                              |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 9196092834  | Jun 3, 2023, 8:53:43 AM  | To Chartres and back        | Ride          | Эпик соло                                                                          | 31048        | 178.89   | null           | null            | false   | null                  | Giant TCR Advanced 1 | activities/9866271692.fit.gz  | null           | 8           | 31048          | 24765       | 178891.4   | 16.196    | 7.224         | 1273           | 1269           | 60.8          | 179.8          | 35.1      | 0             | null                   | null                   | 158         | 77              | null             | null               | null      | 139           | 3394     | null            | 24                  | null              | 3393782    | null           | null        | null          | null       | null               | null | null       | 164                    | 27934       | 0                         | null                      | 0         | null                | 1           | null                    | 1685779200               | 1                 | 16.4                | 15.8                 | 9.8      | 0.65     | 1018.3           | 3.5        | 7.3       | 30           | 0                       | 1685764224   | 1685821696  | 0.5        | 4194513  | null | 0                         | 1                  | 0           | 27927.8            | 3        | null          | null       | null       | null         | 0       | 5.762                 | 162.6         | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/6767f454-38a4-4e8f-9744-0224aa404404.jpg|media/9710109e-2167-4787-af1e-9bc0d48d8b37.jpg|media/f8bfef10-0af0-4f26-884d-2c39ba52e84b.jpg|media/734bba38-006a-46d8-8a3a-821a6664b02c.jpg|media/efe18288-537a-45af-9c8f-0753faee311b.jpg|media/44862277-2c3c-4076-a6c7-c0808d078bcb.jpg|media/7e33db5c-3484-4baf-bcaf-fe45b519cbef.jpg|media/ba09fc14-0114-4089-9d30-97a717a98f97.jpg|media/994a029a-6360-43a3-b2b1-f86bf4926cf0.jpg|media/197cd6db-63da-4dde-bd3b-f66ff65553c5.jpg|media/a69ff087-470a-43e1-aaf9-6514757a67f9.jpg |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 13705580758 | Feb 23, 2025, 8:14:47 AM | Morning Drop Ride           | Ride          | Was dropped on the way back and had to do 80km ITT                                 | 21668        | 168.59   | 180            | 424             | false   | null                  | Rose xlite 04        | activities/14626116429.fit.gz | null           | 7.8         | 21668          | 19470       | 168594.1   | 19.88     | 8.659         | 1288           | 1299           | 31.4          | 184.4          | 12.9      | 0             | null                   | null                   | 164         | 84              | 180              | 149                | null      | 193           | 3718     | null            | 18                  | 424               | 3711913    | null           | null        | null          | null       | null               | null | null       | 222                    | 20512       | 0                         | null                      | 0         | null                | 1           | null                    | 1740297600               | 1                 | 12.6                | 13.3                 | 7        | 0.69     | 1027             | 2.4        | 3.8       | 339          | 0                       | 1740293760   | 1740333952  | 0.875      | 13283968 | null | 0                         | 1                  | 0           | 34184              | 0        | null          | null       | null       | null         | 0       | 7.781                 | 0             | null                    | null                         | null           | null        | null         | null        | 293           | 72        | null                        | null       | null         | null     | null     | null        | null     | null        | media/ca9d74d0-33fc-4db2-bb39-2ffdaaf08d67.jpg|media/584a4f49-c9f9-4560-807d-72752f676e75.jpg                                                                                                                                                                                                                                                                                                                                                                                                                                        |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 5084894611  | Apr 7, 2021, 7:07:29 AM  | Desperados camp Day 4       | Ride          | Pre-epic                                                                           | 25473        | 164.2    | 165            | 248             | false   | null                  | Giant TCR Advanced 1 | activities/5421087598.fit.gz  | null           | 8           | 25473          | 19934       | 164206.4   | 21.2      | 8.238         | 1736           | 1729           | -36.8         | 572.4          | 21.3      | 0             | null                   | null                   | 108         | 79              | null             | 135                | null      | 206           | 4253     | null            | 24                  | 248               | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | 0                         | null                      | 0         | null                | 1           | null                    | 1617778816               | 1                 | 20.1                | 20.1                 | 11.1     | 0.56     | 1011.8           | 1.7        | 2.9       | 86           | 0                       | 1617766144   | 1617812352  | 0.86       | 4194513  | null | 0                         | null               | 0.11        | 16093              | 4        | 345.5         | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/68f7fee3-f6ed-4285-9bd5-a64271b3876e.jpg                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 6178861995  | Oct 28, 2021, 6:09:52 AM | Cyprus Camp Day 5           | Ride          | null                                                                               | 30438        | 161.65   | 159            | 114             | false   | null                  | Giant TCR Advanced 1 | activities/6566187110.fit.gz  | null           | 8           | 30438          | 20881       | 161657.4   | 17.227    | 7.742         | 1484           | 1502           | -4            | 181.6          | 27.7      | 0             | null                   | null                   | 142         | 76              | null             | 121                | null      | 145           | 2956     | null            | 20                  | 114               | 2953912    | null           | null        | null          | null       | null               | null | null       | 178                    | 22443       | 0                         | null                      | 0         | null                | 1           | null                    | 1635400832               | 2                 | 22.3                | 22.3                 | 14.2     | 0.6      | 1016.9           | 1.8        | 1.9       | 73           | 0                       | 1635393920   | 1635433088  | 0.75       | 4194513  | null | 0                         | null               | 0.7         | 16093              | 1        | 285.2         | null       | null       | null         | 0       | 5.311                 | 102.7         | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/a74a5532-85bc-40fe-9a4c-8645bca02811.jpg|media/c335908c-72d8-4a09-ac2f-1719bb665973.jpg                                                                                                                                                                                                                                                                                                                                                                                                                                        |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 9325531707  | Jun 24, 2023, 5:04:12 AM | Coup d'etat Ride            | Ride          | Wonderful ride with nice guys! Thank you [strava://athletes/71275936/10]Luis Chase | 31007        | 159.99   | 179            | 332             | false   | null                  | Giant TCR Advanced 1 | activities/10003255376.fit.gz | null           | null        | null           | null        | null       | null      | null          | null           | null           | null          | null           | null      | null          | null                   | null                   | null        | null            | null             | null               | null      | null          | null     | null            | null                | null              | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | null                      | null                      | null      | null                | null        | null                    | null                     | null              | null                | null                 | null     | null     | null             | null       | null      | null         | null                    | null         | null        | null       | null     | null | null                      | null               | null        | null               | null     | null          | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/0df135af-edfe-4148-af00-1d09287558b1.jpg|media/50663e37-4f88-407d-9fe2-b5c1187a2f69.jpg|media/c196fee3-6fa1-419d-aa9b-95050bead0b9.mp4|media/1e674155-6607-49fd-b28c-5bea672a8cd9.jpg|media/addc9782-4c14-43d5-a978-0c728442fc7c.jpg                                                                                                                                                                                                                                                                                           |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 11993808841 | Jul 27, 2024, 7:16:28 AM | Morning Ride                | Ride          | null                                                                               | 22167        | 157.8    | 177            | 262             | false   | null                  | Rose xlite 04        | activities/12786638321.fit.gz | null           | 7.8         | 22167          | 18925       | 157800.3   | 18.886    | 8.338         | 1451           | 1489           | -6.8          | 624.2          | 23.4      | 0             | null                   | null                   | 93          | 68              | 177              | 137                | null      | 0             | 4130     | null            | 28                  | 262               | 3204       | null           | null        | null          | null       | null               | null | null       | 5                      | 19179       | 0                         | null                      | 0         | null                | 1           | null                    | 1722063616               | 2                 | 23                  | 25.6                 | 20.7     | 0.87     | 1012.7           | 0.7        | 1.6       | 24           | 0                       | 1722057600   | 1722108416  | 0.625      | 13283968 | null | 0                         | 1                  | 0.41        | 20127              | 1        | null          | null       | null       | null         | 0       | 7.119                 | 0             | null                    | null                         | null           | null        | null         | null        | 0             | 2         | null                        | null       | null         | null     | null     | null        | null     | null        | media/db7a0b8e-b71f-4a38-902e-3435ae00f790.jpg                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       |
+-------------+--------------------------+-----------------------------+---------------+------------------------------------------------------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

In this table we can see all activity parameters that are downloaded from the Strava service itself (not from track files). There are various parameters, including such exotic ones as Moon Phase and With Pet .

Note that all velocities are in m/s, time is in seconds, and distance is in kilometres.

Data cleaning and preparation

Let’s create a silver layer table demo_geo_tracks_silver. To do this, convert the time from the activity date column to the TIMESTAMP type using the strptime function, which allows you to specify a specific pattern of text description of a moment in time. And merge the track table obtained from the activity files with the table obtained from the strava_activities.csv file, checking that track_id is contained in filename using the contains function:

CREATE OR REPLACE TABLE demo_geo_tracks_silver AS
    SELECT *,
        strptime("activity date", '%b %d, %Y, %H:%M:%S %p') as time_stamp
        FROM demo_geo_tracks
        JOIN demo_geo_strava_activities ON (contains(filename, track_id));

SELECT * FROM demo_geo_tracks_silver
    LIMIT 10;
Done in 9.4 sec.

+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| track_id        | track_name | track_length_km | track_first_coord_lat | track_first_coord_lon | country       | activity id | activity date            | activity name                  | activity type | activity description                    | elapsed time | distance | max heart rate | relative effort | commute | activity private note | activity gear        | filename                      | athlete weight | bike weight | elapsed time_1 | moving time | distance_1 | max speed | average speed | elevation gain | elevation loss | elevation low | elevation high | max grade | average grade | average positive grade | average negative grade | max cadence | average cadence | max heart rate_1 | average heart rate | max watts | average watts | calories | max temperature | average temperature | relative effort_1 | total work | number of runs | uphill time | downhill time | other time | perceived exertion | type | start time | weighted average power | power count | prefer perceived exertion | perceived relative effort | commute_1 | total weight lifted | from upload | grade adjusted distance | weather observation time | weather condition | weather temperature | apparent temperature | dewpoint | humidity | weather pressure | wind speed | wind gust | wind bearing | precipitation intensity | sunrise time | sunset time | moon phase | bike     | gear | precipitation probability | precipitation type | cloud cover | weather visibility | uv index | weather ozone | jump count | total grit | average flow | flagged | average elapsed speed | dirt distance | newly explored distance | newly explored dirt distance | activity count | total steps | carbon saved | pool length | training load | intensity | average grade adjusted pace | timer time | total cycles | recovery | with pet | competition | long run | for a cause | media                                                                                                                                                                                                                                                                                     | time_stamp          |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 8205566762.fit  | null       | 51.04           | 52.47870256192982     | 13.336647050455213    | Deutschland   | 7688162488  | Aug 23, 2022, 4:39:47 PM | Berlin Recon                   | Ride          | null                                    | 7740         | 51.04    | 174            | 73              | false   | null                  | Giant TCR Advanced 1 | activities/8205566762.fit.gz  | null           | 8           | 7740           | 6518        | 51044.1    | 16.012    | 7.831         | 174            | 188            | 18.6          | 68.4           | 9.3       | 0             | null                   | null                   | 116         | 73              | null             | 134                | null      | 168           | 1083     | null            | 22                  | 73                | 1082634    | null           | null        | null          | null       | null               | null | null       | 202                    | 7738        | 0                         | null                      | 0         | null                | 1           | null                    | 1661270400               | 2                 | 24.5                | 24.6                 | 15.6     | 0.58     | 1018.7           | 3.5        | 3.8       | 60           | 0                       | 1661227392   | 1661278592  | 0.89       | 4194513  | null | 0                         | null               | 0.34        | 16093              | 1        | 301.9         | null       | null       | null         | 0       | 6.595                 | 332.6         | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/f6509beb-c34d-4eb4-97c1-9c80b92308ec.jpg|media/f2fe2880-42a1-4794-bef0-b5d563437aca.jpg                                                                                                                                                                                             | 2022-08-23 16:39:47 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 5758691664.fit  | null       | 3.92            | 55.7587356492877      | 37.745437659323215    | Россия        | 5408223435  | Jun 3, 2021, 6:35:24 PM  | Ночной заезд                   | Ride          | null                                    | 554          | 3.91     | 143            | 2               | false   | null                  | Giant TCR Advanced 1 | activities/5758691664.fit.gz  | null           | 8           | 554            | 554         | 3918.7     | 11.3      | 7.073         | 15             | 20             | 110.2         | 130.8          | 4.7       | -0.2          | null                   | null                   | 92          | 67              | null             | 122                | null      | 127           | 68       | null            | 18                  | 2                 | 68242      | null           | null        | null          | null       | null               | null | null       | 141                    | 555         | null                      | null                      | 0         | null                | 1           | null                    | 1622743168               | 1                 | 17.6                | 17.6                 | 6.2      | 0.47     | 1024.7           | 3.5        | 8.7       | 42           | 0                       | 1622681472   | 1622743552  | 0.8        | 4194513  | null | 0                         | null               | 0.28        | 16093              | 0        | 339           | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | null                                                                                                                                                                                                                                                                                      | 2021-06-03 18:35:24 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 7562241822.fit  | null       | 21.69           | 36.594818104058504    | 30.56384850293398     | Türkiye       | 7103414491  | May 7, 2022, 3:04:49 PM  | Вечерний велозаезд             | Ride          | Завтра будем страдать в длинную гору    | 3044         | 21.69    | 148            | 10              | false   | null                  | Giant TCR Advanced 1 | activities/7562241822.fit.gz  | null           | 8           | 3044           | 2786        | 21692.4    | 16.224    | 7.786         | 105            | 119            | 2             | 45             | 8.1       | 0             | null                   | null                   | 129         | 66              | null             | 108                | null      | 126           | 345      | null            | 21                  | 10                | 343778     | null           | null        | null          | null       | null               | null | null       | 175                    | 3045        | 0                         | null                      | 0         | null                | 1           | null                    | 1651935616               | 2                 | 22.5                | 22.5                 | 9.7      | 0.44     | 1013             | 3.5        | 4.6       | 196          | 0                       | 1651892352   | 1651942272  | 0.21       | 4194513  | null | 0                         | null               | 0.45        | 16093              | 1        | 352.8         | null       | null       | null         | 0       | 7.126                 | 645           | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/318cbe19-4ae0-4800-a873-349417c4df90.jpg                                                                                                                                                                                                                                            | 2022-05-07 15:04:49 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 5752363946.fit  | null       | 62.85           | 55.764476750046015    | 37.71281814202666     | Россия        | 5402167712  | Jun 2, 2021, 3:55:33 PM  | Вечерний велозаезд             | Ride          | null                                    | 8485         | 62.85    | 169            | 125             | false   | null                  | Giant TCR Advanced 1 | activities/5752363946.fit.gz  | null           | 8           | 8485           | 7359        | 62849.2    | 14.5      | 8.54          | 220            | 255            | 154.2         | 226.2          | 10.7      | 0             | null                   | null                   | 168         | 81              | null             | 143                | null      | 208           | 1527     | null            | 16                  | 125               | 1530481    | null           | null        | null          | null       | null               | null | null       | 224                    | 7711        | null                      | null                      | 0         | null                | 1           | null                    | 1622646016               | 2                 | 19.7                | 19.7                 | 5.6      | 0.4      | 1023.4           | 4.3        | 6.3       | 38           | 0                       | 1622595200   | 1622657152  | 0.76       | 4194513  | null | 0                         | null               | 0.68        | 16093              | 1        | 360           | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | null                                                                                                                                                                                                                                                                                      | 2021-06-02 15:55:33 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 5774225138.fit  | null       | 114.24          | 55.99621960893273     | 36.27057650126517     | Россия        | 5423038640  | Jun 6, 2021, 8:24:11 AM  | Granfondo Волоколамск Группа Б | Ride          | 6 место в личном зачете и 1 в командном | 10566        | 114.24   | 189            | 284             | false   | null                  | Giant TCR Advanced 1 | activities/5774225138.fit.gz  | null           | 8           | 10566          | 10496       | 114243.9   | 22.1      | 10.885        | 917            | 894            | 152.8         | 262.8          | 9.6       | 0             | null                   | null                   | 173         | 80              | null             | 154                | null      | 199           | 2027     | null            | 26                  | 284               | 2026580    | null           | null        | null          | null       | null               | null | null       | 242                    | 10567       | 0                         | null                      | 0         | null                | 1           | null                    | 1622966400               | 2                 | 22.1                | 22.1                 | 10.2     | 0.47     | 1014.9           | 3.5        | 4         | 71           | 0.1                     | 1622940800   | 1623003392  | 0.89       | 4194513  | null | 0.01                      | 5                  | 0.45        | 16093              | 5        | 341.8         | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/946f24a2-cd5f-4b18-ae4b-822158a40244.jpg|media/7d11f14c-7845-489a-bb34-f71b882c47e6.jpg|media/08fe3d9d-2f68-4319-b5ce-00c6a6282a49.jpg|media/679c1351-1ac7-4a72-a525-c3bc1766c202.jpg|media/ba7f9fd0-a470-45d9-8083-00ab445251cd.jpg|media/df115e87-def4-46ee-9f7e-899fd370903e.jpg | 2021-06-06 08:24:11 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 3602018438.fit  | null       | 34.76           | 55.76445009559393     | 37.712875390425324    | Россия        | 3370915442  | Apr 29, 2020, 2:03:19 PM | Дневной велозаезд              | Ride          | null                                    | 4075         | 34.76    | 174            | 127             | false   | null                  | Giant TCR Advanced 1 | activities/3602018438.fit.gz  | 83             | 8           | 4075           | 3946        | 34762.6    | 15        | 8.801         | 140            | 146            | 132           | 162.6          | 17.6      | 0             | null                   | null                   | 104         | 86              | 174              | 159                | null      | 191           | 1088     | null            | 11                  | 127               | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | null                      | null                      | 0         | null                | 1           | null                    | 1588168832               | 2                 | 11.5                | 11.5                 | 0        | 0.45     | 1000.3           | 7.4        | 12.1      | 301          | 0                       | 1588125056   | 1588179840  | 0.21       | 4194513  | null | 0                         | null               | 0.53        | 16093              | 1        | 367.2         | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | null                                                                                                                                                                                                                                                                                      | 2020-04-29 14:03:19 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 2665481253.fit  | null       | 43.88           | 57.06134635023773     | 23.311248868703842    | Latvija       | 2509891301  | Jul 6, 2019, 6:12:44 PM  | Night ride                     | Ride          | null                                    | 4958         | 43.88    | 163            | 85              | false   | null                  | Giant TCR Advanced 1 | activities/2665481253.fit.gz  | 83             | 8           | 4958           | 4958        | 43880      | 12.2      | null          | 51             | 43             | -1            | 6              | 7.7       | 0             | null                   | null                   | 101         | 89              | 163              | 143                | null      | 170           | 1395     | null            | 12                  | 85                | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | null                      | null                      | null      | null                | null        | null                    | null                     | null              | null                | null                 | null     | null     | null             | null       | null      | null         | null                    | null         | null        | null       | 4194513  | null | null                      | null               | null        | null               | null     | null          | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | null                                                                                                                                                                                                                                                                                      | 2019-07-06 18:12:44 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 5061483340.fit  | null       | 16.87           | 40.78166037797928     | -73.96295428276062    | United States | 4741945778  | Feb 6, 2021, 7:18:45 AM  | NYC                            | Virtual Ride  | null                                    | 1976         | 16.87    | 157            | 16              | false   | null                  | Giant TCR Advanced 1 | activities/5061483340.fit.gz  | null           | 8           | 1976           | 1953        | 16870.5    | 15.2      | 8.638         | 176            | 0              | 17            | 46.2           | 12.4      | -0.1          | null                   | null                   | 103         | 89              | null             | 133                | null      | 169           | 313      | null            | null                | 16                | null       | null           | null        | null          | null       | null               | null | null       | 175                    | 1977        | null                      | null                      | 0         | null                | 1           | null                    | null                     | null              | null                | null                 | null     | null     | null             | null       | null      | null         | null                    | null         | null        | null       | 4194513  | null | null                      | null               | null        | null               | null     | null          | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/9218c649-fc79-4378-a133-5d691bd50c38.jpg                                                                                                                                                                                                                                            | 2021-02-06 07:18:45 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 1842519266.fit  | null       | 71.94           | 55.73788298293948     | 37.65193585306406     | Россия        | 1717234129  | Jul 21, 2018, 9:51:37 AM | Noon ride                      | Ride          | null                                    | 9707         | 71.94    | 170            | 186             | false   | null                  | Giant TCR Advanced 1 | activities/1842519266.fit.gz  | 83             | 8           | 9707           | 8353        | 71942      | 13.6      | null          | 313            | 299            | 110           | 193            | 33.3      | 0             | null                   | null                   | 101         | 86              | 170              | 148                | null      | 178           | 2298     | null            | 27                  | 186               | null       | null           | null        | null          | null       | null               | null | null       | null                   | null        | null                      | null                      | 0         | null                | null        | null                    | null                     | null              | null                | null                 | null     | null     | null             | null       | null      | null         | null                    | null         | null        | null       | 4194513  | null | null                      | null               | null        | null               | null     | null          | null       | null       | null         | null    | null                  | null          | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | null                                                                                                                                                                                                                                                                                      | 2018-07-21 09:51:37 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+
| 11417255201.fit | null       | 30.91           | 36.71511836349964     | -4.2892365250736475   | España        | 10674837301 | Feb 1, 2024, 2:24:07 PM  | Afternoon Ride                 | Ride          | From new apartment                      | 4793         | 30.91    | 166            | 67              | false   | null                  | Rose xlite 04        | activities/11417255201.fit.gz | null           | 7.8         | 4793           | 4571        | 30913.6    | 15.33     | 6.763         | 658            | 676            | 8.8           | 509.8          | 20.3      | 0             | null                   | null                   | 118         | 74              | null             | 137                | null      | 188           | 850      | null            | 15                  | 67                | 849803     | null           | null        | null          | null       | null               | null | null       | 227                    | 4794        | 0                         | null                      | 0         | null                | 1           | null                    | 1706796032               | 1                 | 16.9                | 16.4                 | 10.4     | 0.65     | 1033             | 2.7        | 5.9       | 128          | 0                       | 1706771968   | 1706809344  | 0.625      | 13283968 | null | 0                         | 1                  | 0.29        | 26463              | 2        | null          | null       | null       | null         | 0       | 6.45                  | 109.7         | null                    | null                         | null           | null        | null         | null        | null          | null      | null                        | null       | null         | null     | null     | null        | null     | null        | media/da2f0e86-c77e-42c2-b7c5-5d08d0ac7acf.jpg                                                                                                                                                                                                                                            | 2024-02-01 14:24:07 |
+-----------------+------------+-----------------+-----------------------+-----------------------+---------------+-------------+--------------------------+--------------------------------+---------------+-----------------------------------------+--------------+----------+----------------+-----------------+---------+-----------------------+----------------------+-------------------------------+----------------+-------------+----------------+-------------+------------+-----------+---------------+----------------+----------------+---------------+----------------+-----------+---------------+------------------------+------------------------+-------------+-----------------+------------------+--------------------+-----------+---------------+----------+-----------------+---------------------+-------------------+------------+----------------+-------------+---------------+------------+--------------------+------+------------+------------------------+-------------+---------------------------+---------------------------+-----------+---------------------+-------------+-------------------------+--------------------------+-------------------+---------------------+----------------------+----------+----------+------------------+------------+-----------+--------------+-------------------------+--------------+-------------+------------+----------+------+---------------------------+--------------------+-------------+--------------------+----------+---------------+------------+------------+--------------+---------+-----------------------+---------------+-------------------------+------------------------------+----------------+-------------+--------------+-------------+---------------+-----------+-----------------------------+------------+--------------+----------+----------+-------------+----------+-------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+---------------------+

Now let’s create a table of silver layer points — leave only the necessary columns in it, convert the data in the time_text column to the TIMESTAMP type (using the strptime and regexp_extract functions), and filter out all points where the latitude or longitude value is empty:

CREATE OR REPLACE TABLE demo_geo_points_silver AS
    SELECT
        track_id,
        latitude,
        longitude,
        elevation,
        temperature,
        power,
        speed,
        strptime(regexp_extract(time_text, '^.{19}'), '%c') as time_stamp,
    FROM demo_geo_points
    WHERE latitude IS NOT NULL AND longitude IS NOT NULL;

SELECT *
    FROM demo_geo_points_silver
    LIMIT 10;
Done in 11.6 sec.

+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| track_id       | latitude           | longitude          | elevation          | temperature | power | speed              | time_stamp          |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.84256364963949  | 37.73899080231786  | 167.60000000000002 | 24          | null  | 36.619200000000006 | 2020-06-26 13:44:05 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.842567421495914 | 37.73883054032922  | 167.60000000000002 | 24          | null  | 36.781200000000005 | 2020-06-26 13:44:06 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.842567421495914 | 37.73866650648415  | 167.60000000000002 | 24          | null  | 37.0512            | 2020-06-26 13:44:07 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.842567421495914 | 37.73849870078266  | 167.60000000000002 | 24          | null  | 37.3068            | 2020-06-26 13:44:08 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.84256364963949  | 37.73833081126213  | 167.60000000000002 | 24          | null  | 37.4652            | 2020-06-26 13:44:09 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.8425560221076   | 37.738166777417064 | 167.60000000000002 | 24          | null  | 37.7856            | 2020-06-26 13:44:10 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.842548394575715 | 37.73799511604011  | 167.39999999999998 | 24          | null  | 37.980000000000004 | 2020-06-26 13:44:11 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.842544538900256 | 37.7378349378705   | 167.20000000000005 | 24          | null  | 38.037600000000005 | 2020-06-26 13:44:12 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.84254076704383  | 37.737670904025435 | 167                | 24          | null  | 38.037600000000005 | 2020-06-26 13:44:13 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+
| 3922792040.fit | 55.84253691136837  | 37.73749924264848  | 166.79999999999995 | 24          | null  | 38.419200000000004 | 2020-06-26 13:44:14 |
+----------------+--------------------+--------------------+--------------------+-------------+-------+--------------------+---------------------+

Analyses

A wide variety of statistics can be derived from the data generated above. We will limit ourselves here to just a few examples.

Statistics by country

Let’s display the total mileage in kilometres for all tracks with the start in a given country, excluding virtual races. Order the result in descending order of total mileage. Use functions round and sum.

SELECT
    country AS "Country",
    round(sum(distance)) AS "Total distance, km",
FROM demo_geo_tracks_silver
WHERE NOT "Activity Type" = 'Virtual Ride'
GROUP BY 1
ORDER BY 2 DESC
+--------------------------------+--------------------+
| Country                        | Total distance, km |
+--------------------------------+--------------------+
| Россия                         | 36947              |
+--------------------------------+--------------------+
| España                         | 30437              |
+--------------------------------+--------------------+
| Türkiye                        | 8255               |
+--------------------------------+--------------------+
| Deutschland                    | 6033               |
+--------------------------------+--------------------+
| Italia                         | 2681               |
+--------------------------------+--------------------+
| France                         | 1833               |
+--------------------------------+--------------------+
| Κύπρος - Kıbrıs                | 1452               |
+--------------------------------+--------------------+
| Latvija                        | 1191               |
+--------------------------------+--------------------+
| Schweiz/Suisse/Svizzera/Svizra | 708                |
+--------------------------------+--------------------+
| Sverige                        | 615                |
+--------------------------------+--------------------+
| Հայաստան                       | 595                |
+--------------------------------+--------------------+
| Magyarország                   | 421                |
+--------------------------------+--------------------+
| Nederland                      | 408                |
+--------------------------------+--------------------+
| Österreich                     | 352                |
+--------------------------------+--------------------+
| Slovensko                      | 223                |
+--------------------------------+--------------------+
| Unknown                        | 56                 |
+--------------------------------+--------------------+
| United Kingdom                 | 48                 |
+--------------------------------+--------------------+

We obtained a table ranking countries according to the total mileage in each country.

Analysing several indicators within one activity

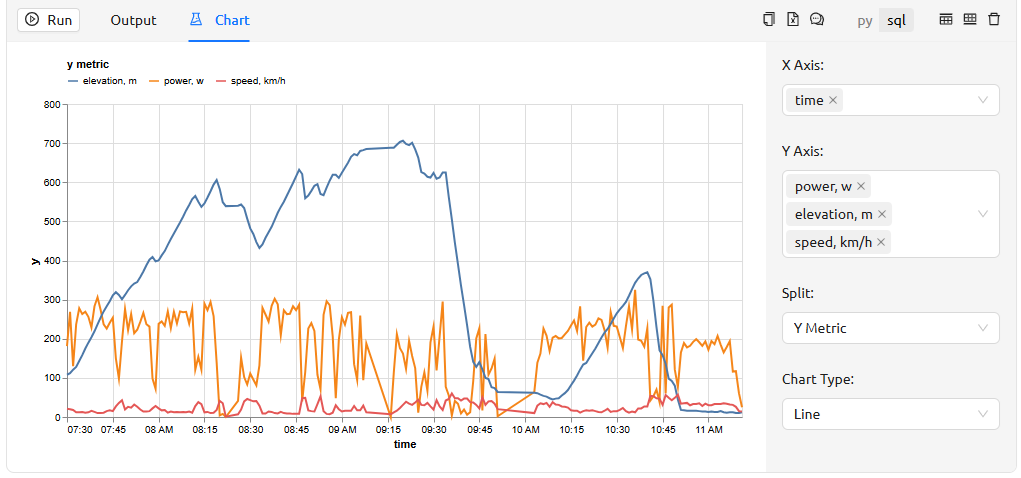

Let’s generate a graph that simultaneously shows speed, altitude and power inside one given activity with minute-by-minute segmentation and an additional start time constraint. We use the functions avg, round and date_trunc with the parameter minute.

SELECT
	round(avg(power)) AS "power, w",
	round(avg(elevation)) AS "elevation, m",
	round(avg(speed)) AS "speed, km/h",
	date_trunc('minute', time_stamp) as time,
FROM demo_geo_points_silver
WHERE track_id = '16627535673.fit' and time_stamp < (timestamp '2025-08-24 07:30:00')
GROUP BY TIME
ORDER BY TIME
Done in 8.5 sec.

+----------+--------------+-------------+---------------------+
| power, w | elevation, m | speed, km/h | time                |
+----------+--------------+-------------+---------------------+
| 181      | 108          | 21          | 2025-08-24 07:30:00 |
+----------+--------------+-------------+---------------------+
| 269      | 112          | 20          | 2025-08-24 07:31:00 |
+----------+--------------+-------------+---------------------+
| 130      | 121          | 18          | 2025-08-24 07:32:00 |
+----------+--------------+-------------+---------------------+
| 237      | 128          | 12          | 2025-08-24 07:33:00 |
+----------+--------------+-------------+---------------------+
| 278      | 143          | 12          | 2025-08-24 07:34:00 |
+----------+--------------+-------------+---------------------+
| ...      | ...          | ...         | ...                 |
+----------+--------------+-------------+---------------------+
201 rows

To display the chart, let’s use the Chart tab in the cell output interface:


We have a graph that simultaneously displays several different metrics for a given activity — speed, altitude, and power. Hovering the mouse over a line on the graph shows the value at that point. In these graphs, users can examine the metrics as they relate to each other. For example, in this case, you can see that speed increases on downhills and power decreases on uphills, while the opposite is true on uphills.

Power distribution within an activity

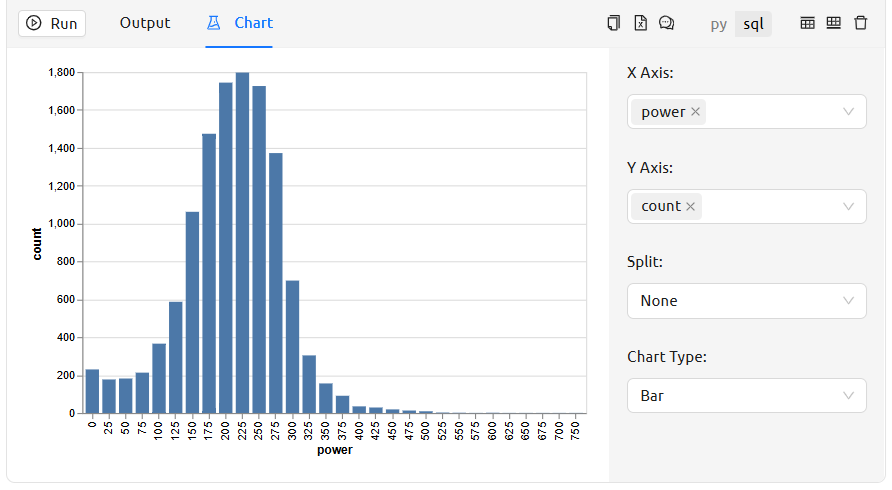

Let’s plot the power distribution within the same activity in 25 watt increments. To do this, let’s use the function floor.

SELECT
	floor(power/25)*25 AS power,
	count(*) AS count
FROM demo_geo_points_silver
WHERE track_id = '16627535673.fit' AND power > 0
GROUP BY 1
ORDER BY 1
Done in 8.2 sec.

+-------+-------+
| power | count |
+-------+-------+
| 0     | 230   |
+-------+-------+
| 25    | 177   |
+-------+-------+
| 50    | 182   |
+-------+-------+
| 75    | 213   |
+-------+-------+
| 100   | 366   |
+-------+-------+
| ...   | ...   |
+-------+-------+
30 rows

To display the chart, let’s use the Chart tab in the cell output interface:


We have obtained a graph of power distribution within one activity in 25 watt increments.

Statistics by calendar periods

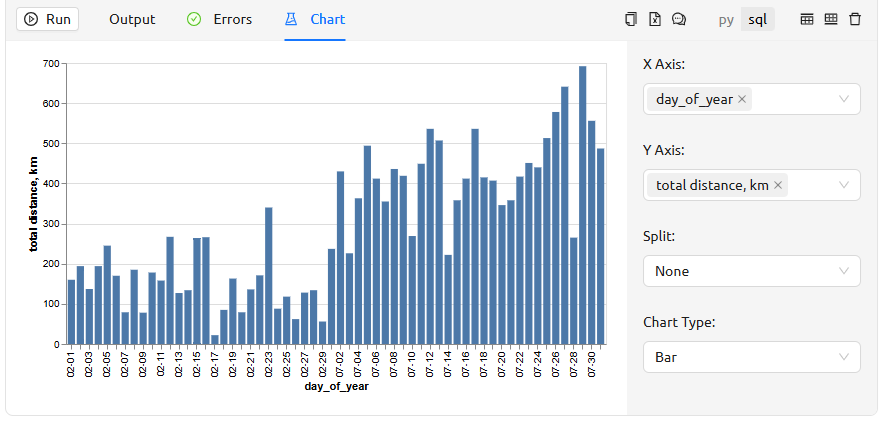

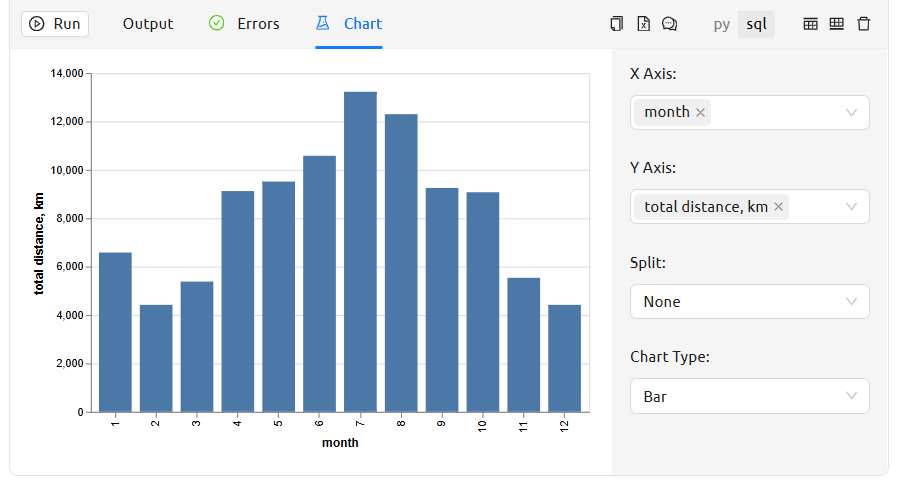

To display detailed statistics by calendar periods (months, days of the week, hours within a day, etc.), let’s create a new table based on demo_geo_tracks_silver, in which we will add columns corresponding to different time periods. Use the concat and regexp_extract functions for this purpose.

CREATE OR REPLACE TABLE demo_geo_tracks_silver_time AS
SELECT
    track_id,
    hour(time_stamp) AS hour,
    regexp_extract(string(time_stamp), '.{5} ') as day_of_year,
    month(time_stamp) AS month,
    monthname(time_stamp) AS month_name,
    dayname(time_stamp) AS day_name,
    concat(regexp_extract(string(day_of_year), '.{2} $') , ' ', month_name) as text_date,
FROM demo_geo_tracks_silver;

SELECT *
    FROM demo_geo_tracks_silver_time
    LIMIT 10;
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| track_id        | hour | day_of_year | month_year | month | year | month_name | day_name  | text_date   |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 8205566762.fit  | 16   | 08-23       | 2022-08    | 8     | 2022 | August     | Tuesday   | 23 August   |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 5758691664.fit  | 18   | 06-03       | 2021-06    | 6     | 2021 | June       | Thursday  | 03 June     |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 7562241822.fit  | 15   | 05-07       | 2022-05    | 5     | 2022 | May        | Saturday  | 07 May      |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 5752363946.fit  | 15   | 06-02       | 2021-06    | 6     | 2021 | June       | Wednesday | 02 June     |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 5774225138.fit  | 8    | 06-06       | 2021-06    | 6     | 2021 | June       | Sunday    | 06 June     |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 3602018438.fit  | 14   | 04-29       | 2020-04    | 4     | 2020 | April      | Wednesday | 29 April    |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 2665481253.fit  | 18   | 07-06       | 2019-07    | 7     | 2019 | July       | Saturday  | 06 July     |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 5061483340.fit  | 7    | 02-06       | 2021-02    | 2     | 2021 | February   | Saturday  | 06 February |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 1842519266.fit  | 9    | 07-21       | 2018-07    | 7     | 2018 | July       | Saturday  | 21 July     |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+
| 11417255201.fit | 14   | 02-01       | 2024-02    | 2     | 2024 | February   | Thursday  | 01 February |
+-----------------+------+-------------+------------+-------+------+------------+-----------+-------------+

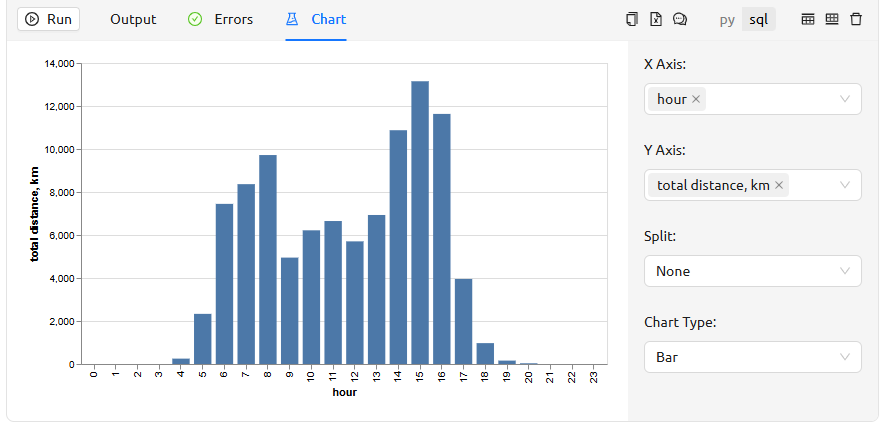

Let’s make a graph that shows the total distance in kilometres over the entire time in activities starting at each hour of the day. To join the demo_geo_tracks_silver_time and demo_geo_tracks_silver tables by the track_id column, we will use the expression JOIN with the USING parameter.

To fill the rows with empty hours we use the functions unnest and generate_series.

CREATE OR REPLACE TABLE demo_geo_tracks_hour AS
SELECT
    distance,
    hour,
    time_stamp
FROM demo_geo_tracks_silver_time
    JOIN demo_geo_tracks_silver
        USING (track_id);

-- Добавляем пустые часы
INSERT INTO demo_geo_tracks_hour (hour, distance)
    SELECT unnest(generate_series(23)), 0;

SELECT
    round(sum(distance)) AS "Total distance, km",
    hour AS Hour
FROM demo_geo_tracks_hour
GROUP BY 2
ORDER BY 2;
Done in 9.5 sec.

+--------------------+------+
| Total distance, km | Hour |
+--------------------+------+
| 0                  | 0    |
+--------------------+------+
| 0                  | 1    |
+--------------------+------+
| 0                  | 2    |
+--------------------+------+
| 0                  | 3    |
+--------------------+------+
| 250                | 4    |
+--------------------+------+
| 2332               | 5    |
+--------------------+------+
| 7448               | 6    |
+--------------------+------+
| 8365               | 7    |
+--------------------+------+
| 9719               | 8    |
+--------------------+------+
| 4949               | 9    |
+--------------------+------+
| ...                | ...  |
+--------------------+------+
24 rows

To display the chart, let’s use the Chart tab in the cell output interface:


Now plot a graph to show the total distance in kilometres for each month for the whole time.

SELECT
    round(sum(distance)) AS "Total distance, km",
    month,
FROM demo_geo_tracks_silver_time
    JOIN demo_geo_tracks_silver
        USING (track_id)
GROUP BY 2
ORDER BY 2
Done in 8.2 sec.

+--------------------+-------+
| total distance, km | month |
+--------------------+-------+
| 6580               | 1     |
+--------------------+-------+
| 4419               | 2     |
+--------------------+-------+
| 5380               | 3     |
+--------------------+-------+
| 9122               | 4     |
+--------------------+-------+
| 9514               | 5     |
+--------------------+-------+
| 10578              | 6     |
+--------------------+-------+
| 13225              | 7     |
+--------------------+-------+
| 12298              | 8     |
+--------------------+-------+
| 9250               | 9     |
+--------------------+-------+
| 9072               | 10    |
+--------------------+-------+
| 5537               | 11    |
+--------------------+-------+
| 4419               | 12    |
+--------------------+-------+

To display the chart, let’s use the Chart tab in the cell output interface:


Expectedly, in the winter months, the total distance is significantly less than in the summer months.

Let us now plot the total distances in kilometres for each date in the given months on a single graph. For this example, let’s take February and July as the months with the lowest and highest total distance.

SELECT
    round(sum(distance)) AS "Total distance, km",
    day_of_year,
FROM demo_geo_tracks_silver_time
    JOIN demo_geo_tracks_silver
        USING (track_id)
WHERE month IN [2,7]
GROUP BY 2
ORDER BY 2
Done in 8.1 sec.

+--------------------+-------------+
| total distance, km | day_of_year |
+--------------------+-------------+
| 160                | 02-01       |
+--------------------+-------------+
| 194                | 02-02       |
+--------------------+-------------+
| 137                | 02-03       |
+--------------------+-------------+
| 194                | 02-04       |
+--------------------+-------------+
| 245                | 02-05       |
+--------------------+-------------+
| ...                | ...         |
+--------------------+-------------+
60 rows

Now let’s rank the days of the week — order the days of the week by total distance in kilometres for the whole time, starting with the maximum.

SELECT
    round(sum(distance)) AS "Total distance, km",
    day_name as "Day of week",
FROM demo_geo_tracks_silver_time
    JOIN demo_geo_tracks_silver
        USING track_id
GROUP BY 2
ORDER BY 1 DESC
Done in 8.4 sec.

+--------------------+-------------+
| total distance, km | day of week |
+--------------------+-------------+
| 21636              | Saturday    |
+--------------------+-------------+
| 19006              | Sunday      |
+--------------------+-------------+
| 13817              | Thursday    |
+--------------------+-------------+
| 12453              | Tuesday     |
+--------------------+-------------+
| 12400              | Wednesday   |
+--------------------+-------------+
| 10696              | Friday      |
+--------------------+-------------+
| 9386               | Monday      |
+--------------------+-------------+

Changes in indicators for the whole period

Now let’s display on one graph the changes in activity indicators over time with segmentation by quarters. To do this, we will use the date_trunc function with the quarter parameter. Let’s take the following indicators:

  • total distance

  • average time per activity

  • average altitude gain per activity

  • average number of calories consumed per activity

SELECT
    round(avg("Elevation Gain")) AS "avg elevation gain, m",
    round(avg("Moving Time")/3.6) AS "avg moving time, h/10",
    round(avg(Calories)) AS "avg calories spent, cal",
    round(sum(distance)) AS "total distance, km",
    period
FROM (SELECT
        distance,
        "Elevation Gain",
        "Moving Time",
        Calories,
        date_trunc('quarter', time_stamp) AS period
        FROM demo_geo_tracks_silver
            JOIN demo_geo_tracks_silver_time
                USING (track_id)
        )
GROUP BY period
ORDER BY period
Done in 8.3 sec.

+-----------------------+-----------------------+-------------------------+--------------------+------------+
| avg elevation gain, m | avg moving time, h/10 | avg calories spent, cal | total distance, km | period     |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
| 52                    | 485                   | 322                     | 423                | 2014-07-01 |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
| 60                    | 597                   | 389                     | 438                | 2014-10-01 |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
| 46                    | 623                   | null                    | 41                 | 2015-01-01 |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
| 60                    | 676                   | 502                     | 390                | 2015-04-01 |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
| 310                   | 1394                  | 816                     | 1426               | 2015-07-01 |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
| ...                   | ...                   | ...                     | ...                | ...        |
+-----------------------+-----------------------+-------------------------+--------------------+------------+
45 rows

Since changes in all these indicators generally indicate an improvement in the athlete’s training level, we will choose the Stacked Area chart type, in which the values of the indicators are added together:

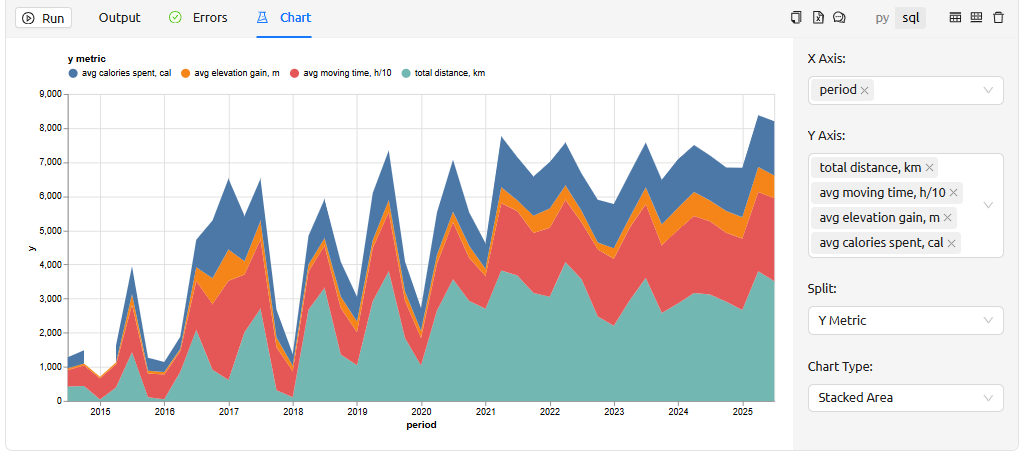

This graph shows, firstly, an increase in all the indicators and, secondly, a decrease in the seasonal factor over time.

Let’s display statistics on total mileage in Russia / outside Russia and in virtual races with segmentation by quarters in one graph.

SELECT
    round(sum(CASE WHEN country == 'Россия' AND NOT "Activity Type" = 'Virtual Ride'
        THEN distance END))
    AS "Russia total, km",
    round(sum(CASE WHEN NOT country == 'Россия' AND NOT "Activity Type" = 'Virtual Ride'
        THEN distance END))
    AS "Outside Russia total, km",
    round(sum(CASE WHEN "Activity Type" = 'Virtual Ride' THEN distance END))
    AS "Virtual Ride total, km",
    date_trunc('quarter', time_stamp) AS period
FROM demo.geo_tracks_silver
GROUP BY period
ORDER BY period
Done in 8.7 sec.

+------------------+--------------------------+------------------------+------------+
| russia total, km | outside russia total, km | virtual ride total, km | period     |
+------------------+--------------------------+------------------------+------------+
| 423              | null                     | null                   | 2014-07-01 |
+------------------+--------------------------+------------------------+------------+
| 438              | null                     | null                   | 2014-10-01 |
+------------------+--------------------------+------------------------+------------+
| 29               | 12                       | null                   | 2015-01-01 |
+------------------+--------------------------+------------------------+------------+
| 365              | 25                       | null                   | 2015-04-01 |
+------------------+--------------------------+------------------------+------------+
| 857              | 569                      | null                   | 2015-07-01 |
+------------------+--------------------------+------------------------+------------+
| ...              | ...                      | ...                    | ...        |
+------------------+--------------------------+------------------------+------------+
45 rows

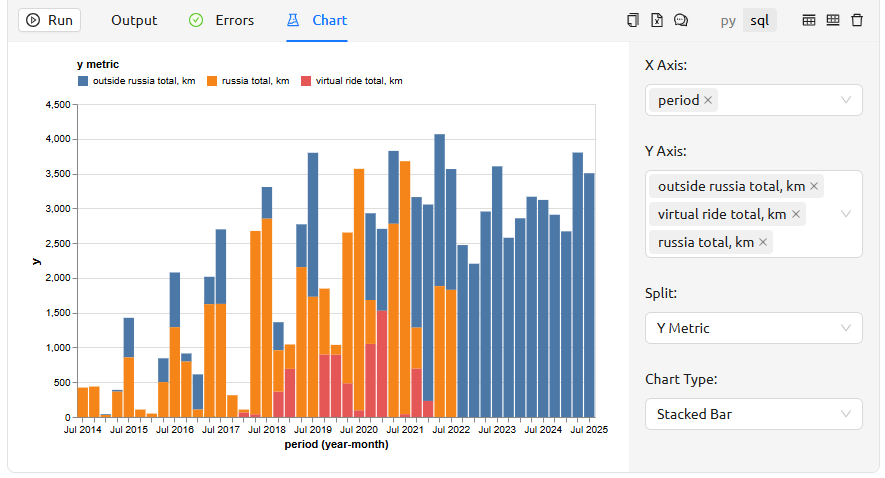

The Stacked Bar type would work well for this type of chart:


In this graph you can see different dependencies: the seasonal factor affects the number of virtual rides — in winter there are more of them; activities outside Russia are first only in summer periods, and later the activities outside Russia remain the only ones. We can also see a general decrease in the seasonal factor, as in the previous graph.

Analysing points by their distance from a given point

We know that the user whose activity archive we are studying lived in Moscow, so let’s try to analyse his activity depending on the distance from Moscow. To do this, let’s take the coordinates zero kilometre of Moscow: 55.75579845052788, 37.617679973467204 and create a table where for each activity we will calculate the distance of its starting point from Moscow in kilometres:

CREATE OR REPLACE TABLE demo_geo_tracks_by_moscow AS
SELECT
    ST_Distance_Sphere(ST_Point(track_first_coord_lat, track_first_coord_lon),
                       ST_Point(55.75579845052788, 37.617679973467204)
                       )/1000
    AS km_from_moscow,
    track_id,
FROM demo_geo_tracks_silver;

SELECT * FROM demo_geo_tracks_by_moscow
    LIMIT 10;
Done in 9.3 sec.

+--------------------+-----------------+
| km_from_moscow     | track_id        |
+--------------------+-----------------+
| 1614.8913738847054 | 8205566762.fit  |
+--------------------+-----------------+
| 8.000389153235107  | 5758691664.fit  |
+--------------------+-----------------+
| 2196.013494904038  | 7562241822.fit  |
+--------------------+-----------------+
| 6.0300128287340815 | 5752363946.fit  |
+--------------------+-----------------+
| 88.17899082303168  | 5774225138.fit  |
+--------------------+-----------------+
| 6.033077121995654  | 3602018438.fit  |
+--------------------+-----------------+
| 890.3163236663786  | 2665481253.fit  |
+--------------------+-----------------+
| 7501.918475014584  | 5061483340.fit  |
+--------------------+-----------------+
| 2.926600115019104  | 1842519266.fit  |
+--------------------+-----------------+
| 3770.6424243313804 | 11417255201.fit |
+--------------------+-----------------+

Let’s look at the distribution of the total length of the tracks depending on the distance of the track start from Moscow in steps of 100 kilometres. For this purpose we will use the function floor.

SELECT
	floor(km_from_moscow/100)*100 AS "Distance from Moscow, km",
	round(sum(distance)) AS "Total tracks distance, km"
FROM demo_geo_tracks_by_moscow
    JOIN demo_geo_tracks_silver
        USING (track_id)
    WHERE NOT "Activity Type" = 'Virtual Ride'
GROUP BY 1
ORDER BY 1;
Done in 8.3 sec.

+--------------------------+---------------------------+
| distance from moscow, km | total tracks distance, km |
+--------------------------+---------------------------+
| 0                        | 35205                     |
+--------------------------+---------------------------+
| 100                      | 457                       |
+--------------------------+---------------------------+
| 200                      | 5                         |
+--------------------------+---------------------------+
| 800                      | 1191                      |
+--------------------------+---------------------------+
| 1200                     | 613                       |
+--------------------------+---------------------------+
| ...                      | ...                       |
+--------------------------+---------------------------+
29 rows

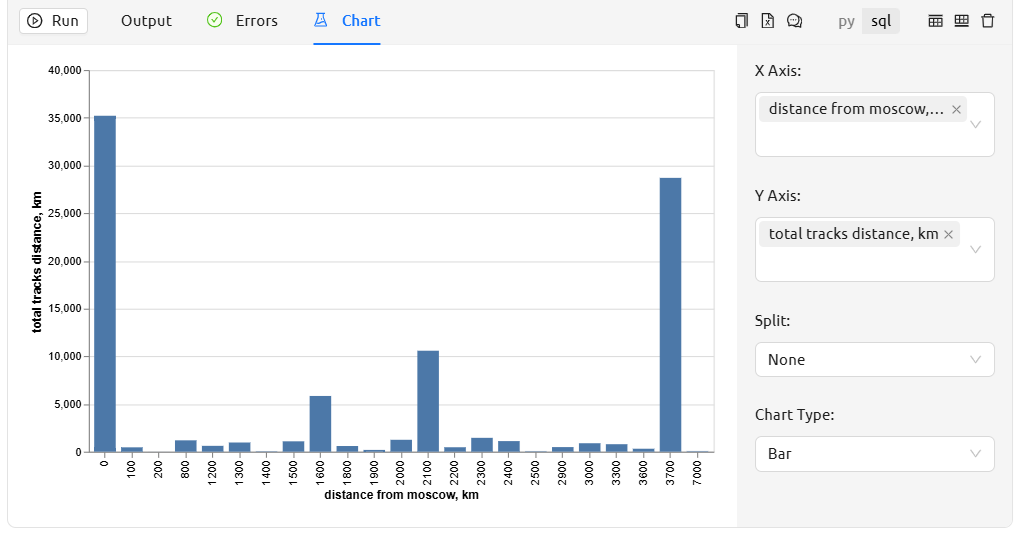

On the graph we can see that there are several columns noticeably higher than the neighbouring ones. They correspond to the different cities from which the user made regular workouts. Apart from Moscow, these are three cities:

Let’s calculate for all activities the distances to these cities:

CREATE OR REPLACE TABLE demo_geo_tracks_by_cities AS
SELECT
    track_id,
    distance,
    ST_Distance_Sphere(ST_Point(track_first_coord_lat, track_first_coord_lon),
                        ST_Point(55.75579845052788, 37.617679973467204)
                        )/1000
        AS km_from_moscow,
    ST_Distance_Sphere(ST_Point(track_first_coord_lat, track_first_coord_lon),
                        ST_Point(36.71011042348239, -4.429510437480414)
                        )/1000
        AS km_from_malaga,
    ST_Distance_Sphere(ST_Point(track_first_coord_lat, track_first_coord_lon),
                        ST_Point(52.51622694136956, 13.377732359062023)
                        )/1000
        AS km_from_berlin,
    ST_Distance_Sphere(ST_Point(track_first_coord_lat, track_first_coord_lon),
                        ST_Point(36.544934513586334, 31.993451012738028)
                        )/1000
        AS km_from_alanya,
FROM demo_geo_tracks_silver;

SELECT * FROM demo_geo_tracks_by_cities
    LIMIT 10;
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| track_id        | distance | km_from_moscow     | km_from_malaga     | km_from_berlin     | km_from_alanya     |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 8205566762.fit  | 51.04    | 1614.8913738847054 | 2235.249319891205  | 5.0145197840760245 | 2294.093997594629  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 5758691664.fit  | 3.91     | 8.000389153235107  | 3787.2509319742358 | 1618.720214954235  | 2180.111417985302  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 7562241822.fit  | 21.69    | 2196.013494904038  | 3104.0466510427395 | 2221.451446627775  | 127.78858146201004 |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 5752363946.fit  | 62.85    | 6.0300128287340815 | 3785.4665468428007 | 1616.7118606890685 | 2180.242964284234  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 5774225138.fit  | 114.24   | 88.17899082303168  | 3707.0000971542977 | 1528.712391035889  | 2186.697705370458  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 3602018438.fit  | 34.76    | 6.033077121995654  | 3785.4691666595877 | 1616.7152967306572 | 2180.24094049402   |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 2665481253.fit  | 43.88    | 890.3163236663786  | 3051.4212916480724 | 811.7057240823138  | 2370.646300384682  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 5061483340.fit  | 16.87    | 7501.918475014584  | 5886.25300373306   | 6375.612772054101  | 8583.236350749687  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 1842519266.fit  | 71.94    | 2.926600115019104  | 3780.985953704283  | 1612.7664280078745 | 2176.465565328427  |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+
| 11417255201.fit | 30.91    | 3770.6424243313804 | 12.516233931245793 | 2232.9498881694144 | 3217.9897501282717 |
+-----------------+----------+--------------------+--------------------+--------------------+--------------------+

Let’s derive statistics on the total distance of tracks with start in different cities. As a threshold value of distance we take 100 km:

SELECT
    round(sum(CASE WHEN km_from_moscow < 100 THEN distance END))
        AS "Moscow total, km",
    round(sum(CASE WHEN km_from_malaga < 100 THEN distance END))
        AS "Malaga total, km",
    round(sum(CASE WHEN km_from_alanya < 100 THEN distance END))
        AS "Alanya total, km",
    round(sum(CASE WHEN km_from_berlin < 100 THEN distance END))
        AS "Berlin total, km",
    round(sum(CASE WHEN
        (
            km_from_moscow >= 100 AND
            km_from_malaga >= 100 AND
            km_from_alanya >= 100 AND
            km_from_berlin >= 100
        )
        THEN distance END))
        AS "Rest total, km",
    round(sum(distance)) AS "Total, km"
FROM demo_geo_tracks_by_cities
+------------------+------------------+------------------+------------------+----------------+-----------+
| moscow total, km | malaga total, km | alanya total, km | berlin total, km | rest total, km | total, km |
+------------------+------------------+------------------+------------------+----------------+-----------+
| 35155            | 28969            | 8136             | 5841             | 21242          | 99343     |
+------------------+------------------+------------------+------------------+----------------+-----------+

Displaying multiple points on the map

To demonstrate the display of points on the map, let’s create a separate table with points of one activity within Moscow with the maximum distance for the whole time.

CREATE OR REPLACE TABLE demo_geo_points_for_map AS
    SELECT * FROM demo_geo_points_silver
        WHERE
        (track_id IN (
        SELECT track_id
            from demo_geo_tracks_by_distance
                JOIN demo_geo_tracks_silver
                    USING (track_id)
            WHERE km_from_moscow < 100
            ORDER BY distance DESC
            LIMIT 1
            )
    );

SELECT count(*) AS "Points for map total"
    FROM demo_geo_points_for_map;
Done in 9.7 sec.

+----------------------+
| points for map total |
+----------------------+
| 16458                |
+----------------------+

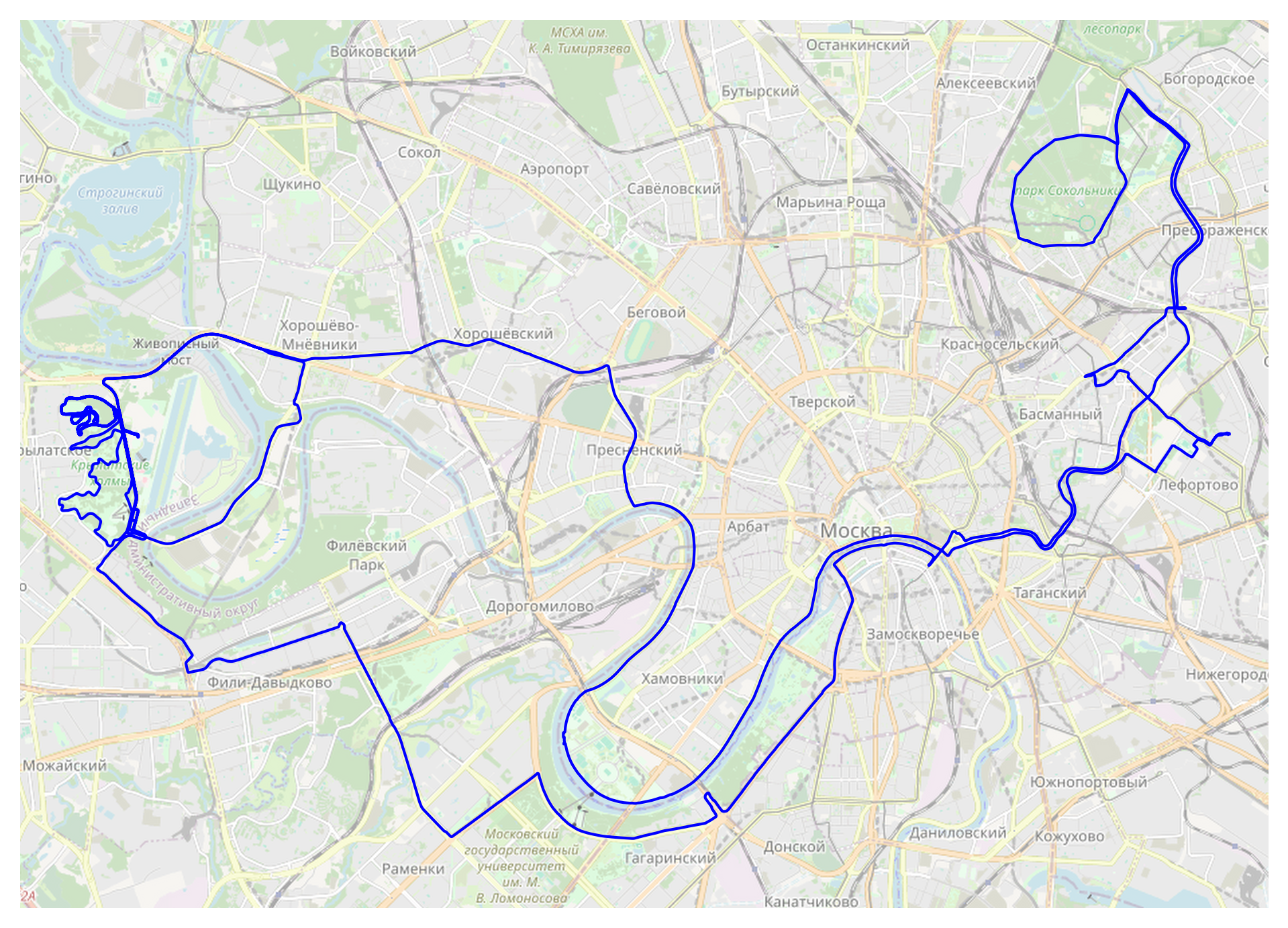

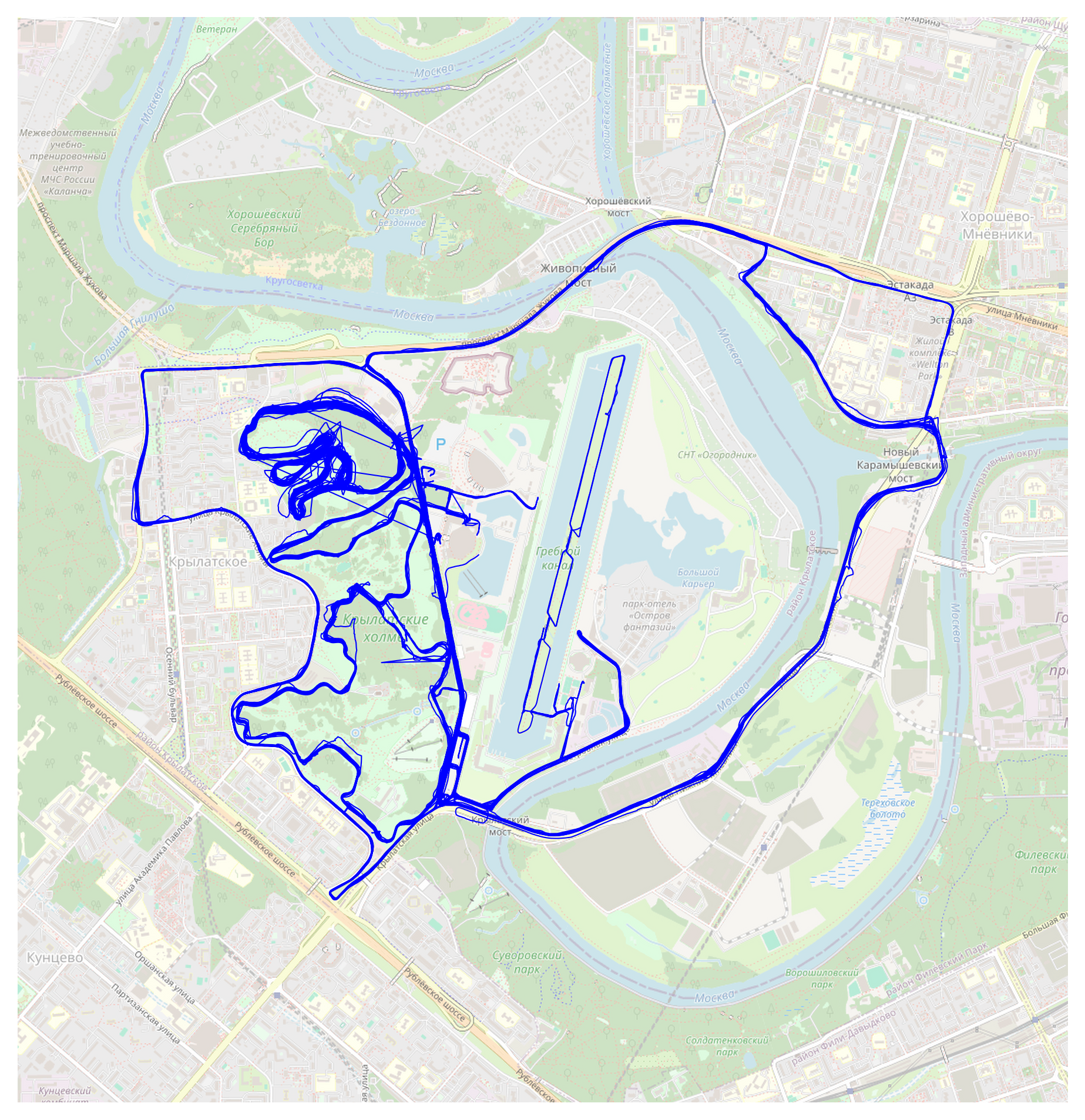

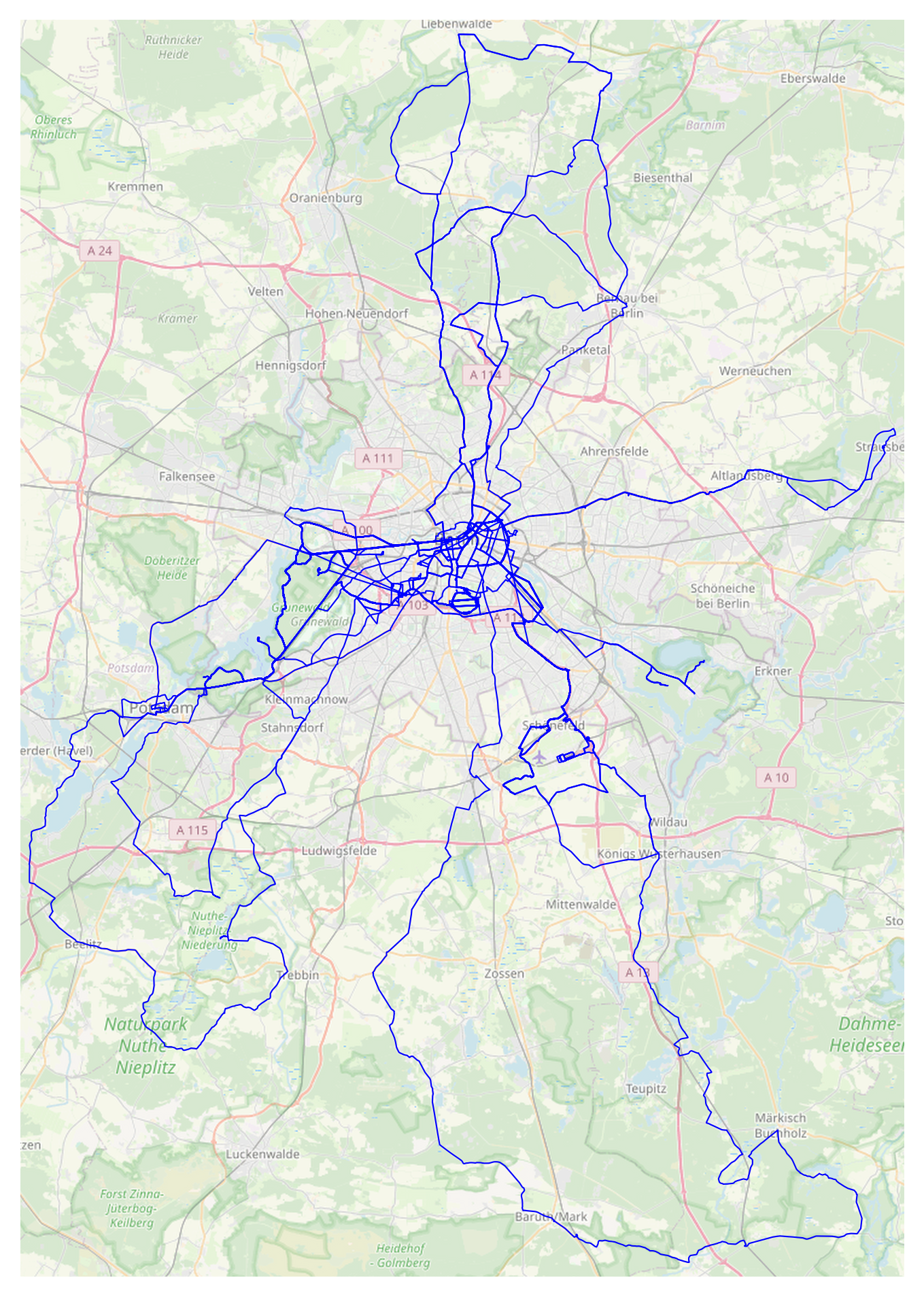

Now in a cell of type Python we will write the code that can be used to access the created table with filtered points and display them on the map OSM using the module Python TileMapBase:

import tngri
import pyarrow
import pyiceberg
from pyiceberg.catalog import load_catalog
from contextlib import suppress
import pandas as pd
import matplotlib.pyplot as plt
import tilemapbase
import warnings
warnings.filterwarnings("ignore")

def print_map(source_table_name):

    # Load the source table
    source_table = catalog.load_table(source_table_name)

    # Convert to DataFrame
    trip_df = source_table.scan().to_pandas()
    print(f'Source table size: {trip_df.shape}')

    tilemapbase.init(create=True)

    # Size of map margins around the extreme points of the track
    expand=0.01
    extent = tilemapbase.Extent.from_lonlat(
        trip_df.longitude.min() - expand,
        trip_df.longitude.max() + expand,
        trip_df.latitude.min() - expand,
        trip_df.latitude.max() + expand,
    )

    track_names = trip_df['track_id'].unique()
    print(f 'Number of tracks: {len(track_names)}')

    # Print the total distance of the tracks in the source table
    print(tngri.sql('''
    select round(sum(distance)) as "Total distance, km"
    from demo_geo_tracks_silver
    where track_id in (
            select track_id
            from demo_geo_points_for_map)
    '''))

    track_list = []
    for track_name in track_names:
        track = trip_df.loc[trip_df['track_id'] == track_name].apply(
            lambda x: tilemapbase.project(x.longitude, x.latitude), axis=1
        ).apply(pd.Series)
        track.columns = ["x", "y"]
        track_list.append(track)

    tiles = tilemapbase.tiles.build_OSM()

    fig, ax = plt.subplots(figsize=(8, 8), dpi=300)

    # height -- map detail
    plotter = tilemapbase.Plotter(extent, tiles, height=600)

    # alpha -- map clutter
    plotter.plot(ax, tiles, alpha=0.6)

    # If there are several tracks, make the line thickness smaller
    if len(track_names) == 1:
        width = 1
    else:
        width = 0.5
    for track in track_list:
        ax.plot(track.x, track.y, color='blue', linewidth=width)

    plt.axis('off')
    fig.get_figure()

print_map('demo_geo_points_for_map')
Done in 30 sec.

Размер исходной таблицы: (16458, 8)
Количество треков: 1
Суммарная дистанция треков: 135.0 км

Note that to output the total distance of the displayed tracks, we use the SELECT query call in cell Python via the tngri.sql function.

Now let’s overwrite the table with the coordinates of the points to be displayed on the map, selecting all activities with a start in Berlin to display them all on the same map.

CREATE OR REPLACE TABLE demo_geo_points_for_map AS
    SELECT
        latitude,
        longitude,
        track_id
    FROM demo_geo_points_silver
    WHERE
    (track_id IN (
        SELECT track_id
            FROM demo_geo_tracks_by_distance
            WHERE km_from_berlin < 100
        )
    );

SELECT * FROM demo_geo_points_for_map
    LIMIT 10;
Done in 9.6 sec.

+--------------------+--------------------+----------------+
| latitude           | longitude          | track_id       |
+--------------------+--------------------+----------------+
| 52.529693618416786 | 13.444848032668233 | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.52970124594867  | 13.44483470544219  | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.52970124594867  | 13.44481467269361  | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.52969739027321  | 13.444789862260222 | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.5296859908849   | 13.444773685187101 | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.52967827953398  | 13.4447565022856   | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.529674507677555 | 13.444727919995785 | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.529674507677555 | 13.44469740986824  | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.529670652002096 | 13.444674527272582 | 9440992383.fit |
+--------------------+--------------------+----------------+
| 52.529670652002096 | 13.444655416533351 | 9440992383.fit |
+--------------------+--------------------+----------------+

Let’s output the number of points in the created table:

SELECT count(*) AS "Points for map total"
    FROM demo_geo_points_for_map
+----------------------+
| points for map total |
+----------------------+
| 708616               |
+----------------------+

Run the previously created print_map function in cell Python for the updated table with the same name and display a map with all the activities in Berlin:

print_map('demo_geo_points_for_map')
Done in 1 min. 6 sec.

Размер исходной таблицы: (708616, 3)
Количество треков: 108
Суммарная дистанция треков: 5841.0 км

Now let’s map all the tracks with the start at Velotrek in Moscow:

CREATE OR REPLACE TABLE demo.geo_points_for_map AS
SELECT
    latitude,
    longitude,
    track_id
FROM demo.geo_points_silver
WHERE track_id NOT IN
    (SELECT DISTINCT track_id
    FROM demo.geo_points_silver
    WHERE ST_Distance_Sphere(ST_Point(latitude, longitude),
                           ST_Point(55.76314006886495, 37.43303308055759)
                           )/1000 > 3);

SELECT count(*) AS "Points for map total"
    FROM demo.geo_points_for_map;
+----------------------+
| points for map total |
+----------------------+
| 215466               |
+----------------------+

Let’s start the map display:

print_map('demo_geo_points_for_map')
Done in 39 sec.

Размер исходной таблицы: (215466, 3)
Количество треков: 43
Суммарная дистанция треков: 2063.0 км
